GL1200 Parts Buying Guide: What Wears Out First and What to Replace

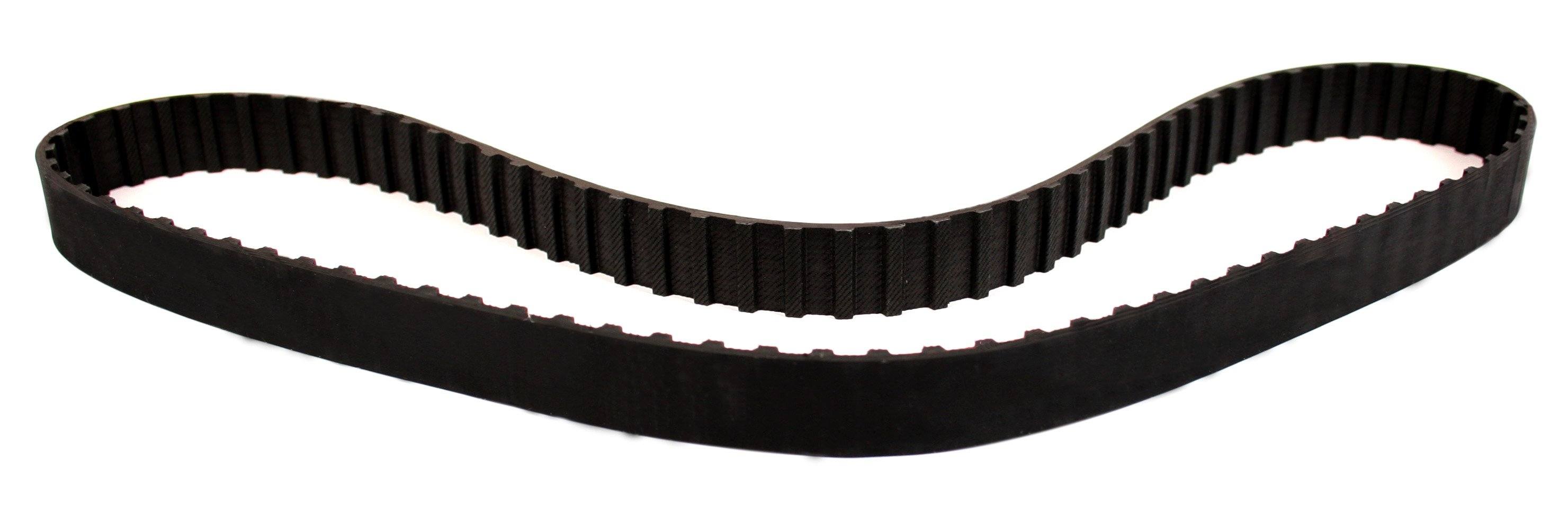

Timing belts are an age issue, not a mileage issue.

A GL1200 can have low miles and still have belts that are decades old. Rubber hardens. Cracks form. The belt can lose tension or fail. On this interference engine, a broken or slipped belt can mean bent valves and major engine damage.

If there is no clear service record, replace the belts immediately. A practical rule is roughly every five years, or sooner when the history is unknown.

Buy:

• Two quality timing belts
• Tensioner bearings if noisy, rough, or loose
• Tensioner springs if weak or corroded
• Timing cover gaskets or seals as needed

This is the classic late-night garage job. Take your time. Mark everything. Follow the service manual. Do not trust an old belt simply because it looks acceptable.

The GL1200 charging system deserves serious attention, particularly on earlier bikes.

The stator is buried inside the engine. If it fails, replacement is a major job. But not every charging problem means the stator itself is dead.

Heat and resistance can damage the charging connectors. A discoloured, loose, melted, or blackened connector can create voltage loss and eventually destroy the charging system. As Motorcyclist explains in its GL1200 stator coverage, the five-pin stator connector is a known area to inspect.

Test before buying an expensive stator:

• Battery voltage at rest
• Charging voltage around 2,000 rpm
• Stator output and resistance
• Regulator-rectifier operation
• Three-pin and five-pin charging connectors
• Main fuse, grounds, and battery terminals

Your buy-list may include:

• Regulator-rectifier
• Stator, if testing confirms failure
• Connector repair supplies or upgraded harness pieces
• Heat-resistant wire and terminals
• Permanent voltmeter
• Dielectric grease for clean, properly fitted connections

Do not automatically replace the stator before checking the connectors. Diagnose first. Spend once.

The water pump is a natural companion job to the timing belts. Access is already improved, and an old cooling system can hide several age-related problems.

Inspect for:

• Coolant leaking from the pump weep hole
• Shaft play or roughness
• Hardened or swollen hoses
• Corrosion around hose connections
• Thermostat that sticks open or closed
• Old coolant residue and blocked passages

Consider buying a water pump sealing kit, O-rings, thermostat, radiator cap, and coolant hoses while the front of the engine is open.

A fresh cooling system means peace of mind when the temperature climbs and the road keeps stretching ahead.

After brakes, move to the chassis.

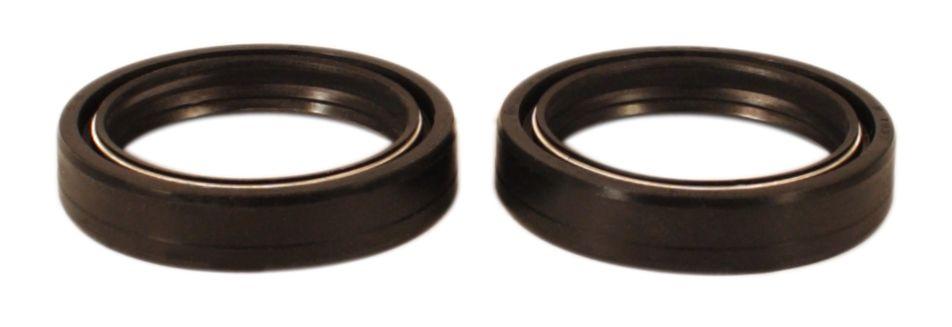

Fork seals commonly leak after years of sitting. Old fork oil loses damping ability, while worn bushings can create unwanted movement. Replace fork seals and dust boots together, then inspect the tubes for pitting.

The steering head bearings deserve attention too. A notch at centre, rough movement, or excessive play can affect stability.

At the rear, test the air-assisted shock system:

• Does it hold pressure?
• Are the shocks leaking?
• Is damping still present?
• Are the air lines cracked or brittle?
• Are mounting bolts tight and straight?

Your suspension buy-list may include:

• Fork seals and dust boots
• Fork oil
• Fork bushings, if worn
• Steering head bearings
• Rear shocks or rebuild components
• Air lines and fittings

Rubber ages even when the motorcycle is parked.

Inspect the intake boots, carburetor gaskets, vacuum lines, fuel lines, and slide diaphragms. Cracks create air leaks. Hardened seals create poor running. A GL1200 that starts but will not idle cleanly often needs more than fresh fuel.

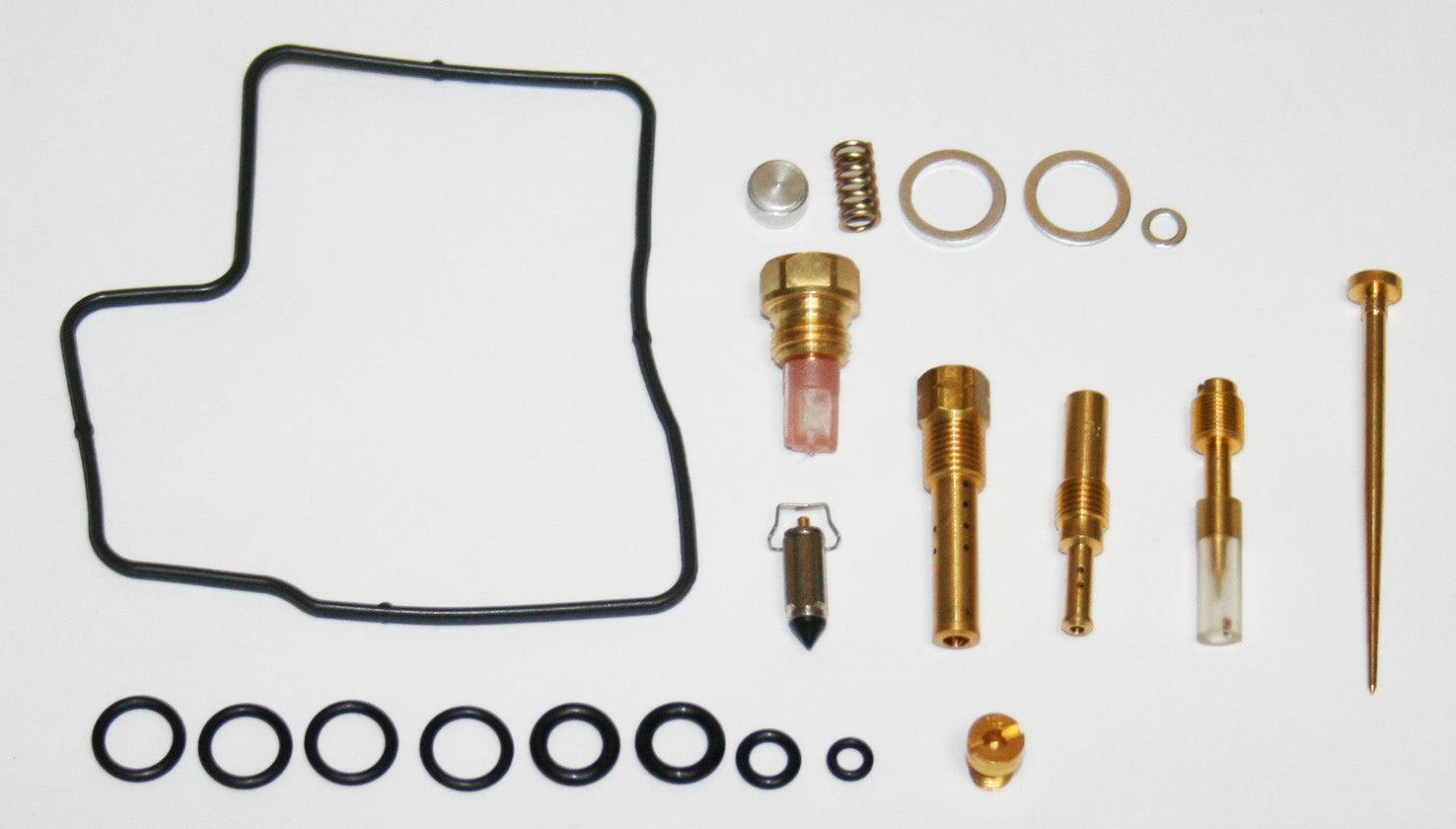

For carbureted models, plan for:

• Carburetor rebuild kit
• Float valves and gaskets
• Intake boot O-rings
• Slide diaphragm inspection
• Vacuum line replacement
• Fuel lines and fuel filter
• Air filter
• Petcock inspection

Fuel-injected Limited and SE-i models need a different approach. Do not order carburetor parts for them. Confirm the exact fuel system first.

Also inspect the tires. Tread depth is not enough. Check the date code, sidewalls, cracking, and flat spots. Old tires can ruin an otherwise excellent restoration.

Age affects the rest of the wiring too.

Look closely at:

• Fuse block and main fuse
• Ignition switch
• Starter solenoid
• Handlebar switches
• Turn signal and lighting connectors
• Brake light switches
• Instrument cluster connections
• Grounds and added accessories

A brittle fuse block, loose terminal, or corroded switch can create intermittent faults that appear only after the bike warms up, or after you are several hours from home.

Clean connections before replacing components. Check voltage drop under load. Trace accessory wiring that has been twisted, taped, or poorly crimped.

The enclosed shaft drive is durable, but it is not maintenance-free.

Inspect the driveshaft universal joint, final-drive gear area, rear wheel coupler, and splines. Look for:

• Sharp or hooked spline teeth
• Excessive play
• Pitting
• Dry or missing lubricant
• Rumbling bearings
• Metal particles in the final-drive oil

Clean and lubricate the splines with the correct moly-based lubricant during rear-wheel service. If wear is severe, good Honda Goldwing used parts may be the practical solution because some driveline components are difficult to source new.

Honda stopped building the GL1200 in 1987, and most GL1200-specific parts left Honda's official catalog long ago. So a 1984–1987 Gold Wing project today runs on three supply sources:

• New OEM-spec reproduction parts: belts, seals, gaskets, hoses, brake components, filters, electrical items, and rubber. These are the workhorses of any GL1200 parts order.
• Used and NOS Goldwing parts: model-specific bodywork, brackets, instruments, luggage, and discontinued driveline pieces that were never reproduced.
• Universal and custom-fit parts: handlebars, grips, lighting, audio, and accessories that fit multiple GL generations.

Goldwingparts.com was built for exactly this mix. We carry thousands of GL1200 parts across every system on this page, with a fitment guarantee on every part, massive in-stock inventory ready to ship same-day, free shipping to the USA and Canada on orders over $50, and worldwide shipping available. Not sure whether a part fits your year and trim? Ask us. Real riders and mechanics answer.

Browse the complete GL1200 parts collection and build your whole list in one order.

Used parts can be the right answer for GL1200-specific bodywork, brackets, instruments, luggage, and discontinued driveline pieces. But inspect carefully.

Ask for clear photos and verify:

• OEM or casting marks
• Part numbers
• Mounting tabs and threads
• Corrosion around electrical terminals
• Cracks, repairs, or heat damage
• Spline wear
• Warped body panels
• Missing hardware
• Connector shape and terminal count

Choose new reproduction parts for wear items when possible: belts, seals, gaskets, hoses, brake components, filters, and rubber. Choose used parts when originality, availability, or a model-specific casting matters more.
